Stable Box Front Basic Hinged with Sliding Door and Mini Door

Fully Hinged Stable Front for Maximum Flexibility and Horse Comfort

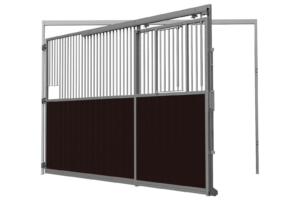

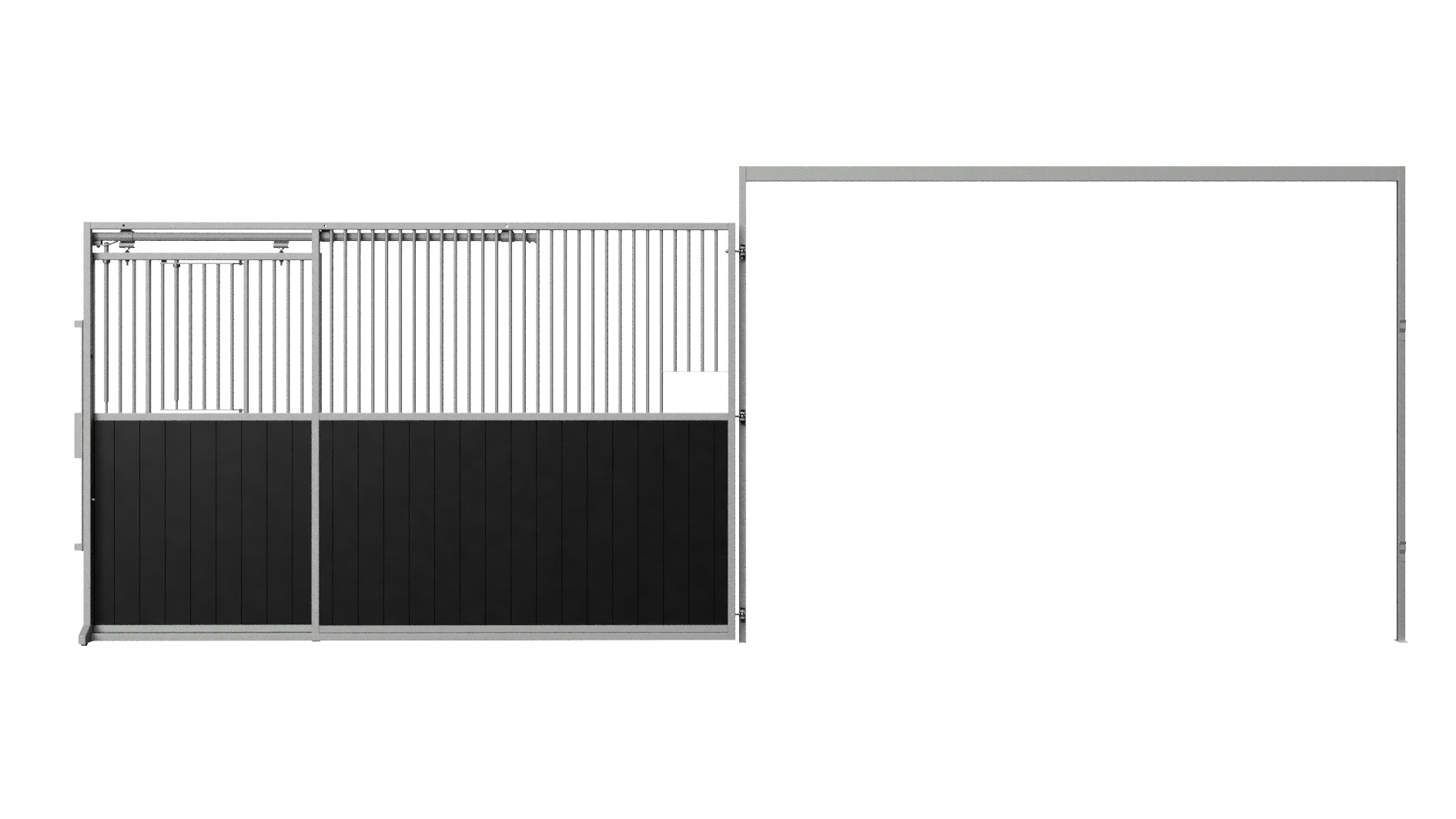

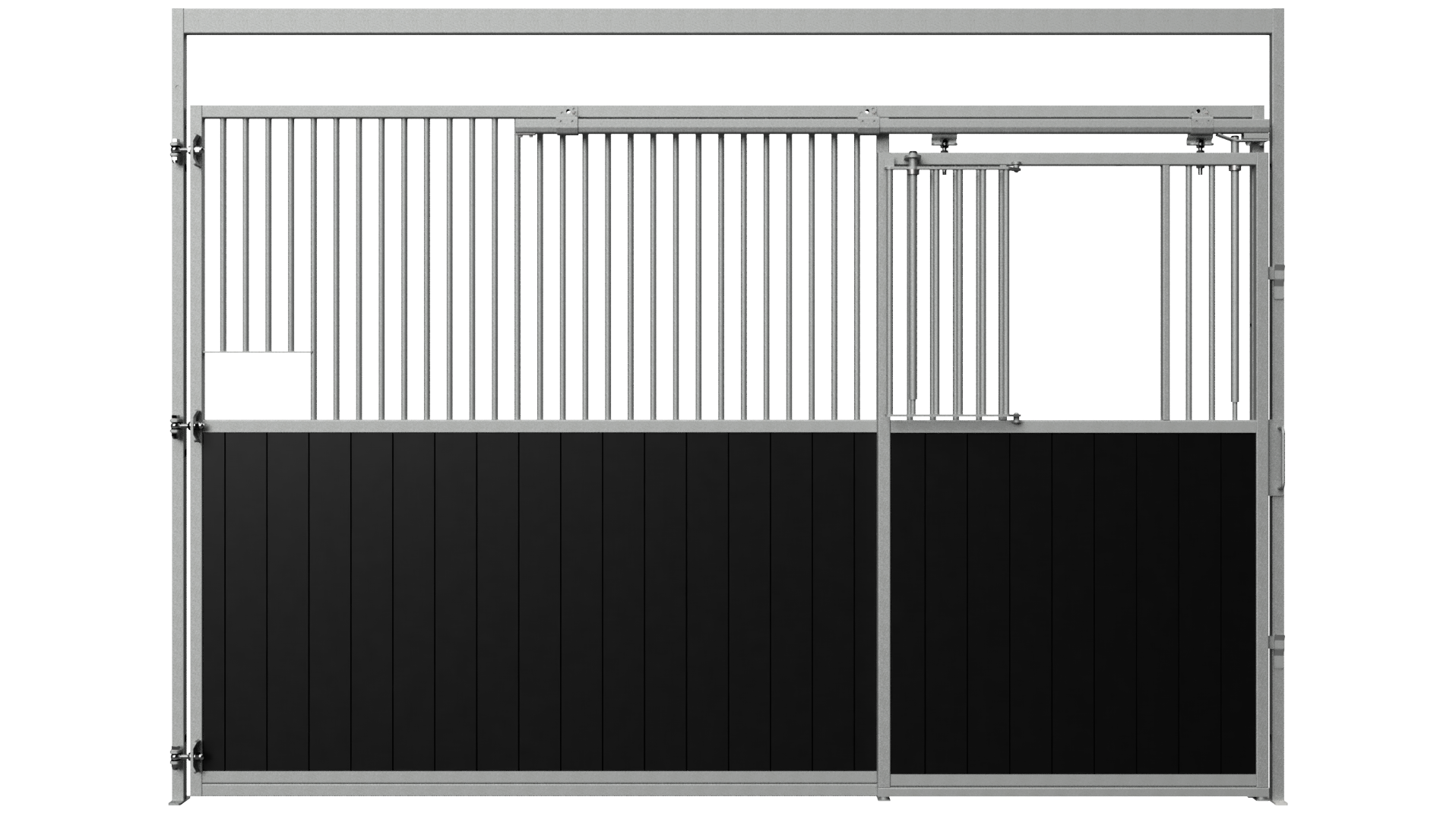

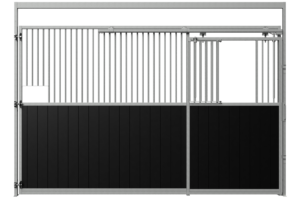

The Stable Box Front Basic Fully Hinged with Sliding Door and Mini Door from Mulder Stable and Yard is a versatile and well-engineered solution for stables where flexibility, efficiency and horse comfort are essential. In this configuration, the entire front is fully hinged, allowing the stable to be completely opened. This makes mechanical mucking out possible, with a drive-through height of 2420 mm. The integrated, lockable mini door in the sliding door adds extra convenience and contributes to the well-being of the horse.

Practical and Flexible in Daily Use

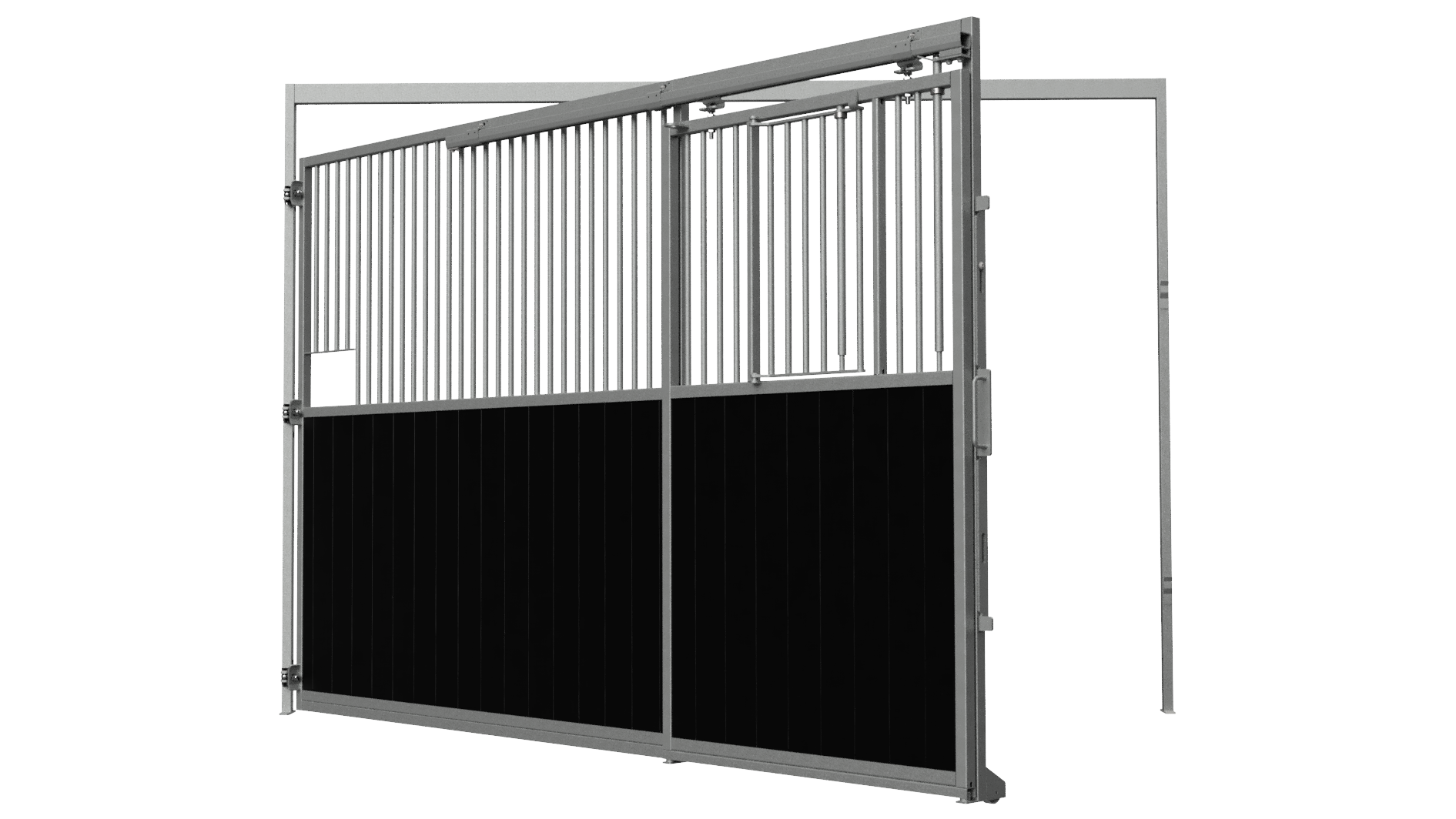

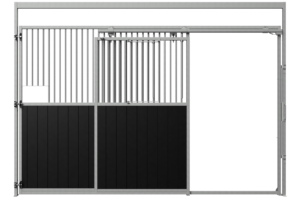

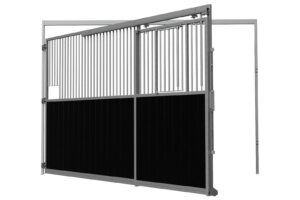

Thanks to the fully hinged front, a wide and unobstructed opening can be created with ease. This is ideal in situations where space, accessibility and efficient stable management are important. At the same time, the sliding door with integrated mini door provides a safe and accessible way for the horse to have contact with the stable aisle. The mini door is lockable and can be securely fixed in position.

Smooth-Running and Reliable Rail System

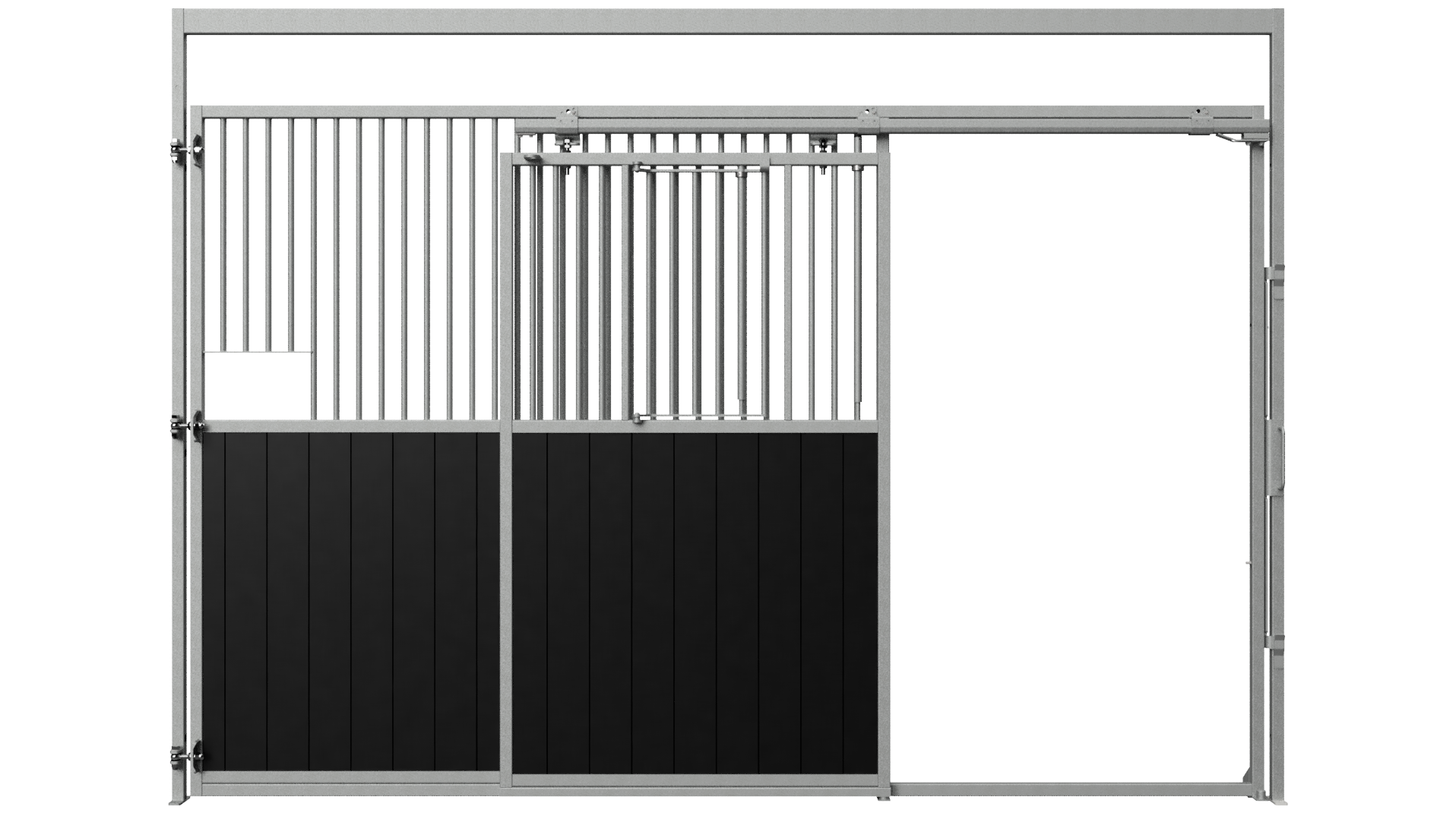

The sliding door is equipped with a robust rail system with double rollers, ensuring smooth, quiet operation with minimal effort. Depending on the layout of the stable, the sliding door can be positioned to open either to the left or to the right.

Robust and Maintenance-Free Construction

As expected from Mulder Stable and Yard, this stable box front is manufactured entirely from hot-dip galvanised steel. The strong 40 x 40 mm box sections combined with a solid 3 mm thick U-profile provide excellent strength and long-term stability. The vertical bars have a diameter of 22 mm with a safe bar spacing of 50 mm, making this front highly reliable for intensive daily use.

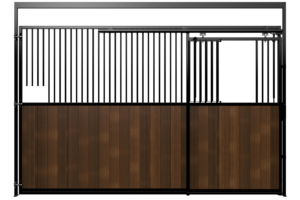

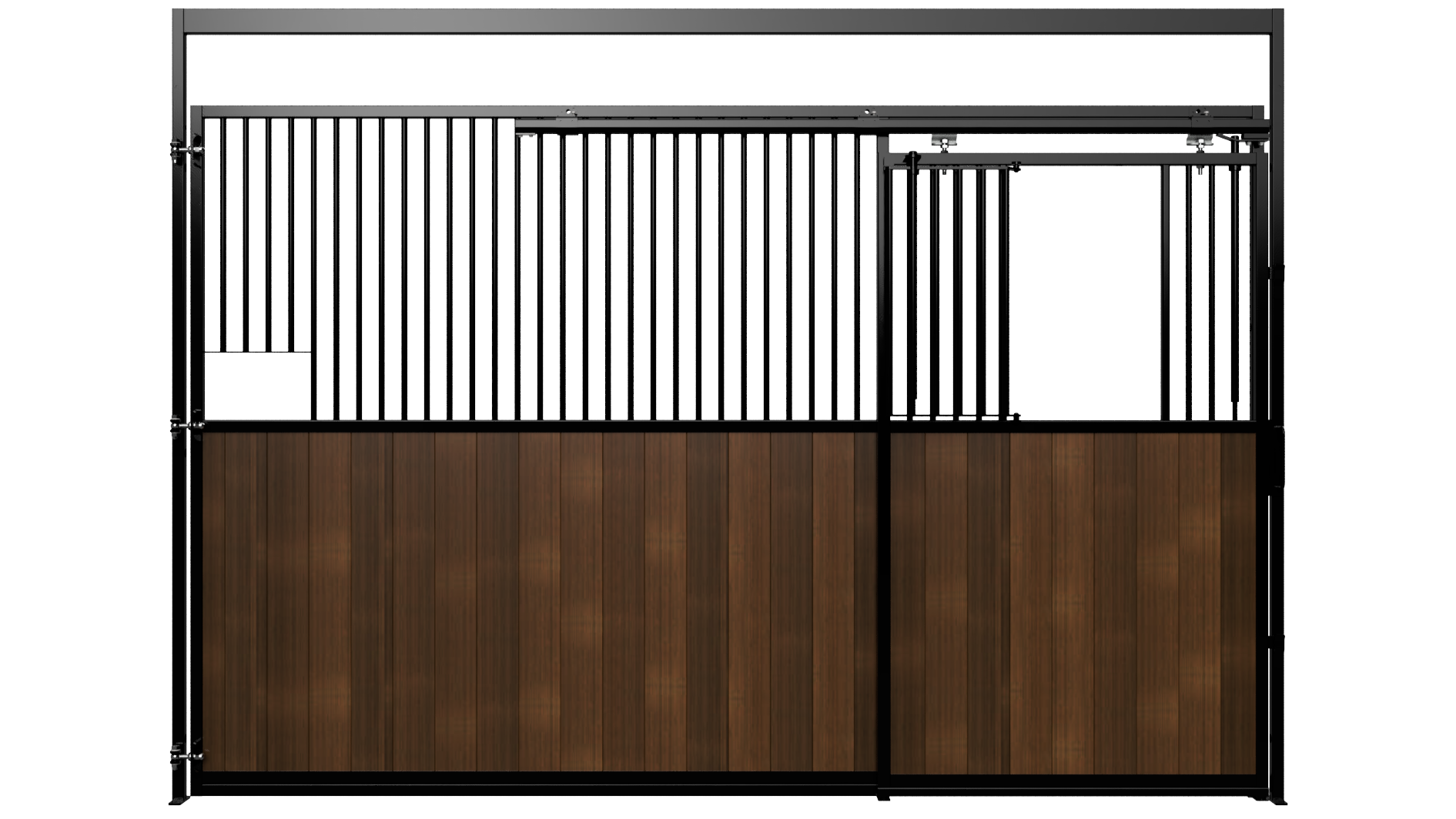

Choice of Polymer or Bamboo Planks

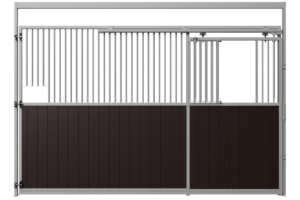

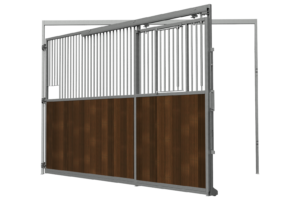

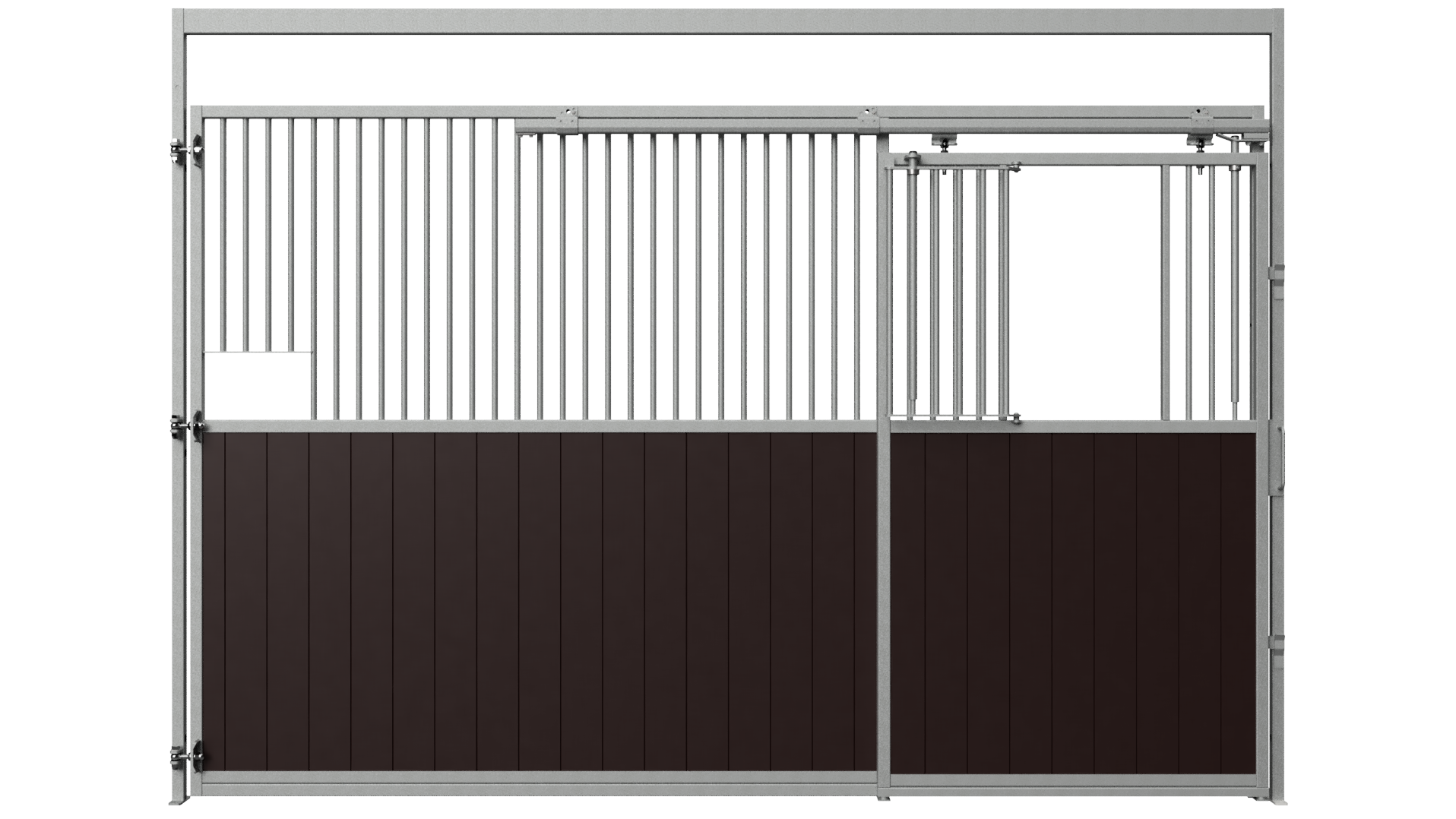

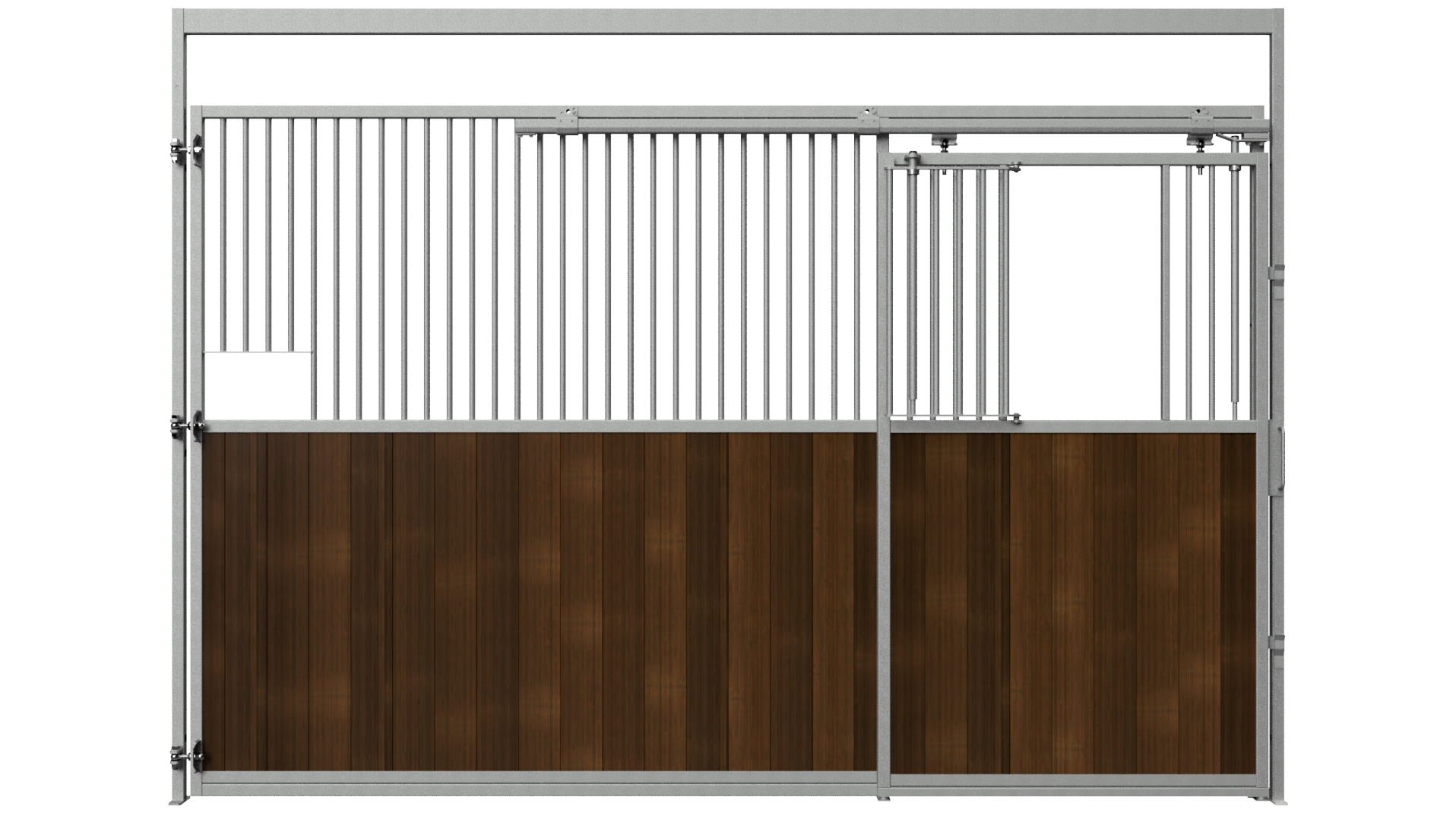

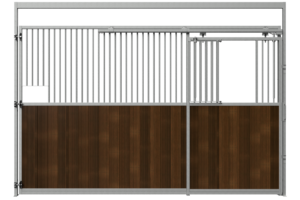

For the wall infill, you can choose between maintenance-free polymer planks or durable solid bamboo planks. Both options are 32 mm thick and feature a tongue-and-groove connection, reinforced with high-quality strengthening profiles to ensure a solid and seamless finish.

Suitable for Indoor and Sheltered Outdoor Use

This fully hinged stable box front is ideally suited for indoor stables and can also be applied in sheltered outdoor setups, provided it is protected from direct rainfall.

Specifications

• Box section: 40 x 40 mm with 3 mm thick U-profile
• Bar diameter: 22 mm
• Bar spacing: 50 mm
• Front width options: 3000 or 3500 mm
• Front height: 2500 mm
• Drive-through height: 2420 mm
• Material: hot-dip galvanised steel, corrosion-resistant
• Sliding door with integrated lockable mini door
• Fully hinged front for mechanical mucking out
• Hinge direction: left or right selectable
• Choice of maintenance-free polymer or bamboo planks
• Available from stock

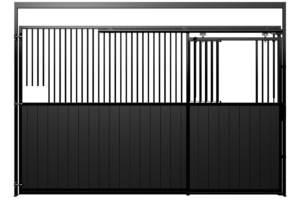

Coated Steel Option (Optional Upgrade)

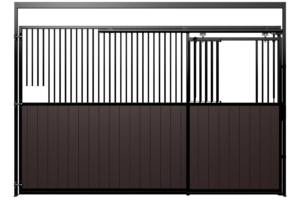

For a more refined and premium appearance, this stable box front is also available in coated steel. This optional upgrade is supplied at an additional cost and has an estimated delivery time of approximately 14 working days.

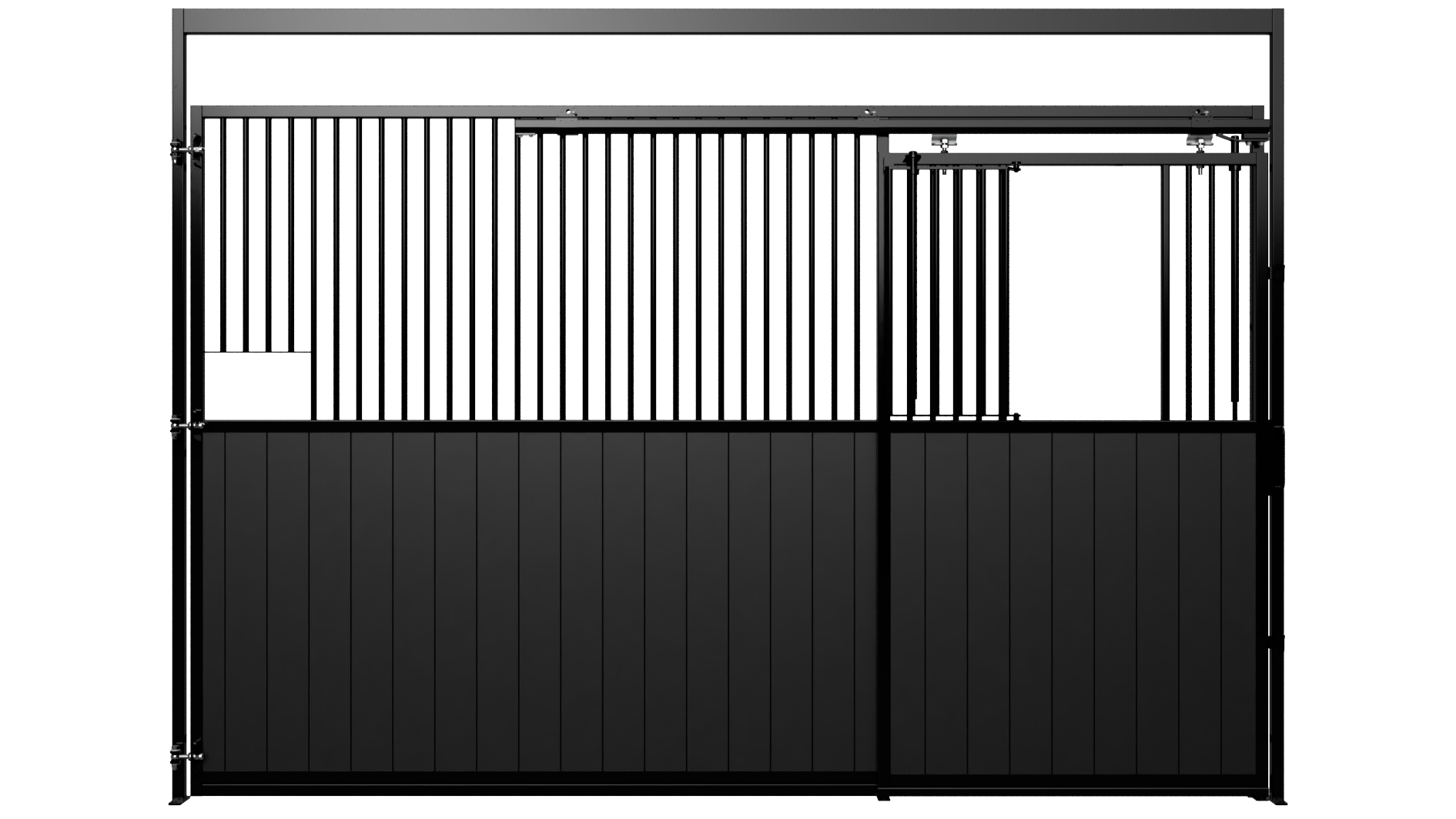

Standard options include black coated steel (RAL 9005) or anthracite coated steel (RAL 7016). If you require a different RAL colour, please specify this in the remarks field of your quotation request so we can provide current pricing and delivery information.

Advice, Delivery and On-Site Installation

Would you like assistance in configuring your horse stable? Contact us. Our team is happy to help. We offer both delivery and on-site installation throughout the Netherlands, Belgium, Luxembourg, Germany and across Europe.

You can rely on our experienced professionals, who work with care, precision and a genuine passion for the trade.
