Stable Box Partition Basic with Upper Bars

Horse Stable Box Partition Basic with Upper Bars

The Basic stable box partition with upper bars provides a practical and safe separation between horse boxes while maintaining social contact between the horses. The open upper section allows horses to see each other without the risk of injury. This partition is supplied as standard with a height of 2200 mm and is available in multiple widths, including 2500, 3000, 3500 and 4000 mm.

Solid Construction, Safe Finish

The partition is built from a hot-dip galvanised steel frame with a 40 x 40 mm box section and a 3 mm thick U-profile. This construction ensures a strong and secure partition without sharp edges or corners. The bars have a diameter of 22 mm with a spacing of 50 mm, providing a safe solution for both horses and handlers.

Choice of Polymer or Bamboo Boards

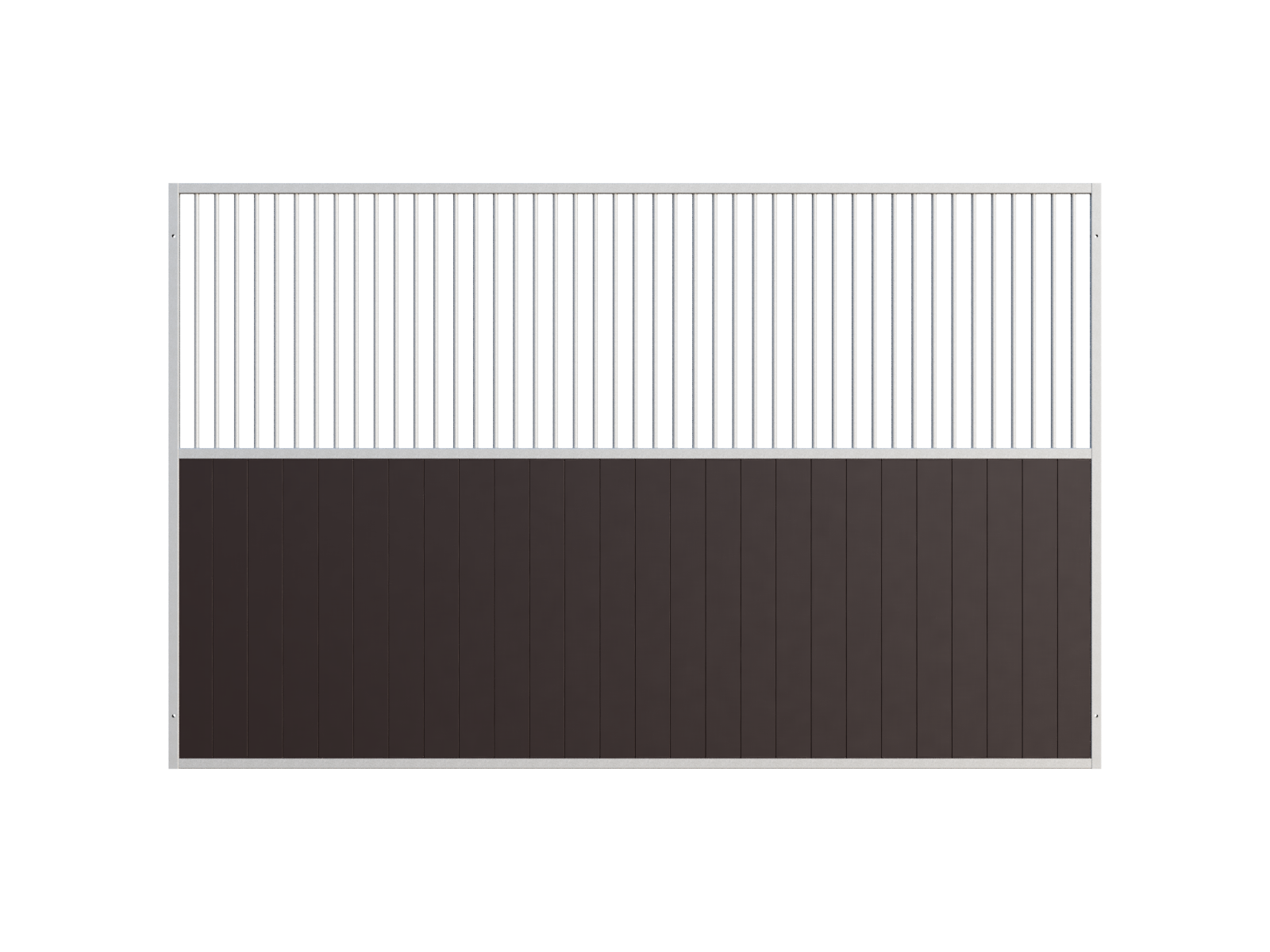

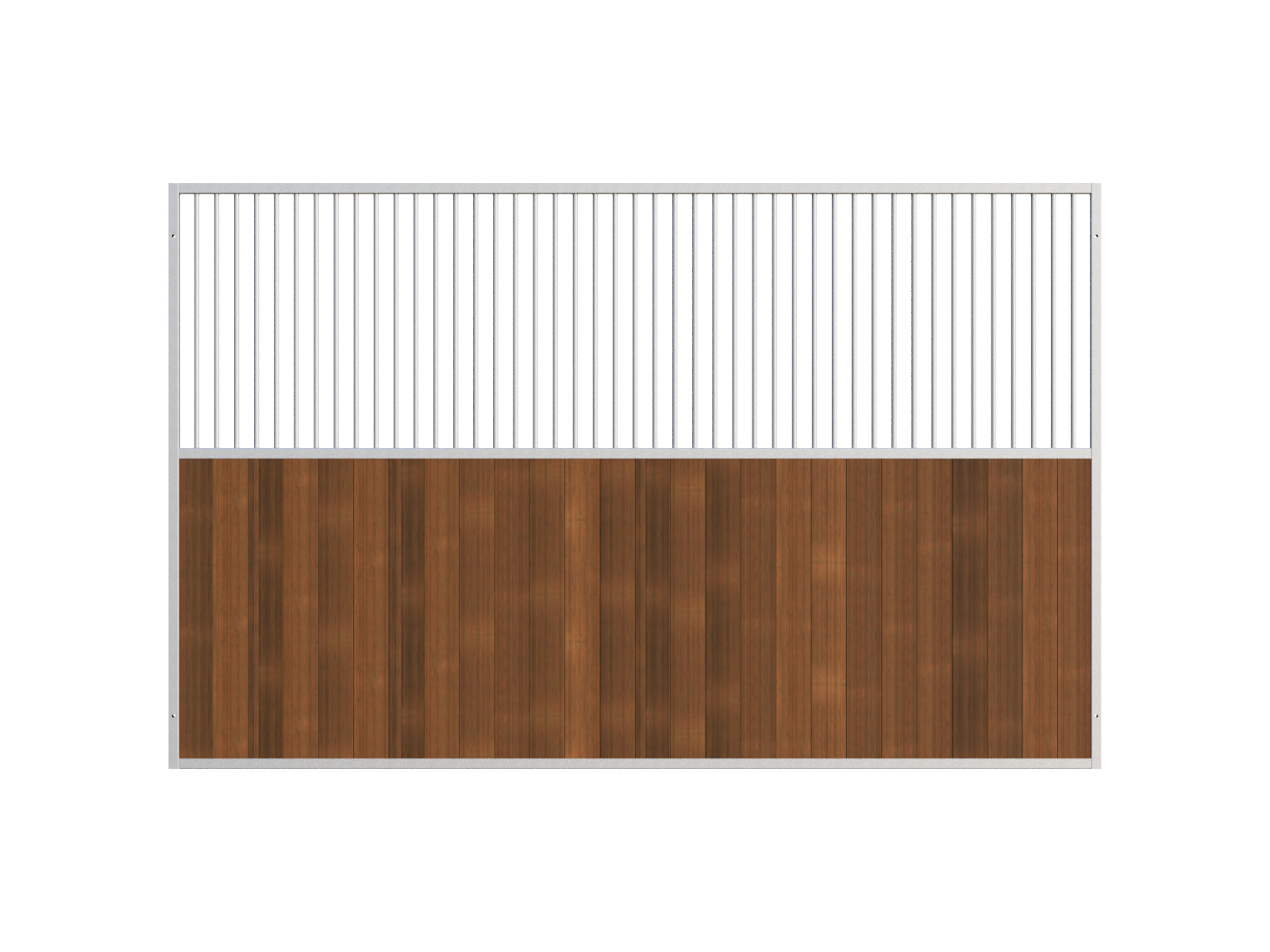

The stable box partition can be supplied with maintenance-free polymer boards in black or brown, or with solid bamboo boards for a warmer, more natural appearance. Both materials are 32 mm thick, impact-resistant and designed to withstand kicking and biting. The polymer and bamboo boards are colourfast and easy to clean.

High-Quality Materials, Long Service Life

Thanks to the fully hot-dip galvanised steel, the partition is highly resistant to corrosion and wear. Combined with solid polymer or bamboo boards, this results in a maintenance-free solution with a long service life, suitable for indoor stables and sheltered outdoor stables.

Specifications

• Steel section: 40 x 40 mm (3 mm thick U-profile)
• Bar diameter: 22 mm
• Bar spacing: 50 mm
• Width options: 2500, 3000, 3500 or 4000 mm
• Height: 2200 mm
• Material: hot-dip galvanised steel (fully galvanised)
• Boards: solid polymer or bamboo (32 mm thick)

Coated Steel (Optional Upgrade)

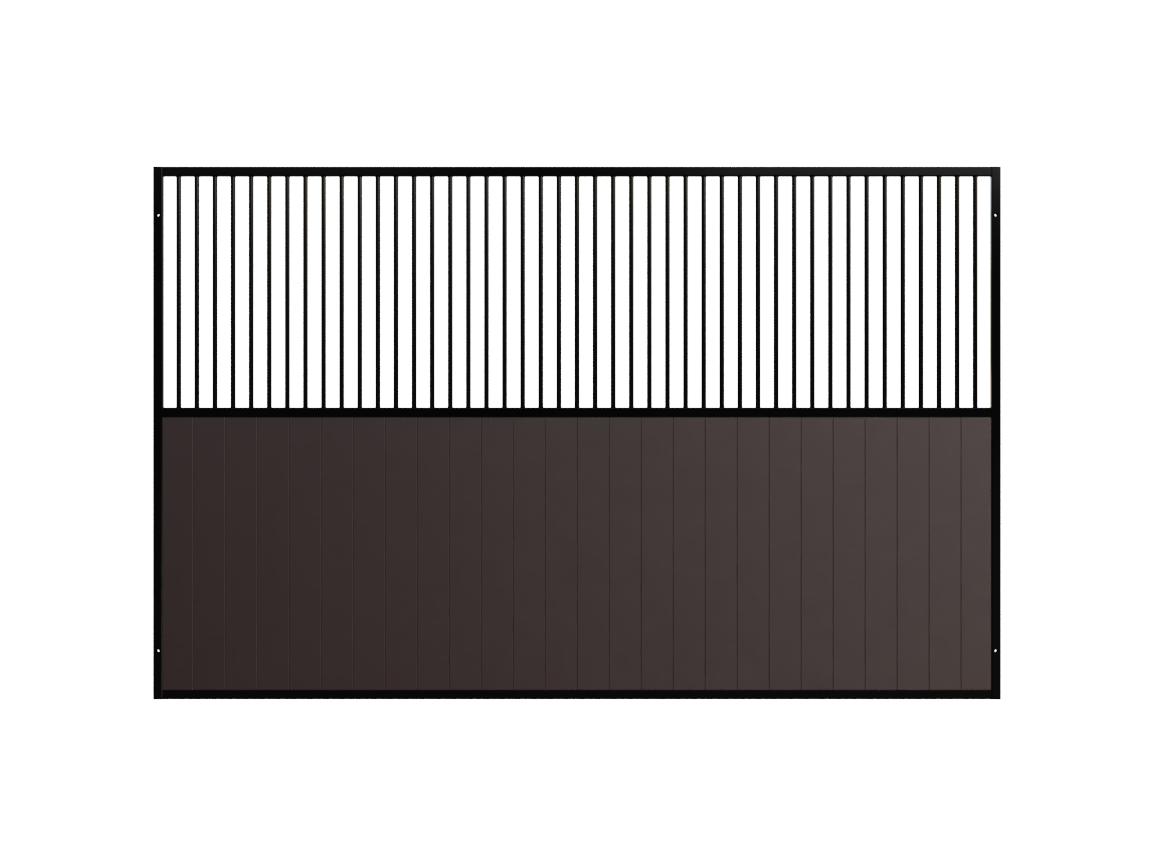

For a more refined and luxurious appearance, the stable box partition can be supplied in coated steel. This premium upgrade is available at an additional cost and has an estimated delivery time of approximately 14 working days.

Standard colour options include black coated steel (RAL 9005) and anthracite coated steel (RAL 7016). If you prefer a different RAL colour, please specify this in the remarks field of your quotation request. We will be happy to confirm current pricing and lead times.

Advice, Delivery and On-Site Installation

Would you like assistance in configuring your horse stable? Contact us. Our team is happy to help. We offer both delivery and on-site installation throughout the Netherlands, Belgium, Luxembourg, Germany and across Europe.

You can rely on our experienced professionals, who work with care, precision and a genuine passion for the trade.
